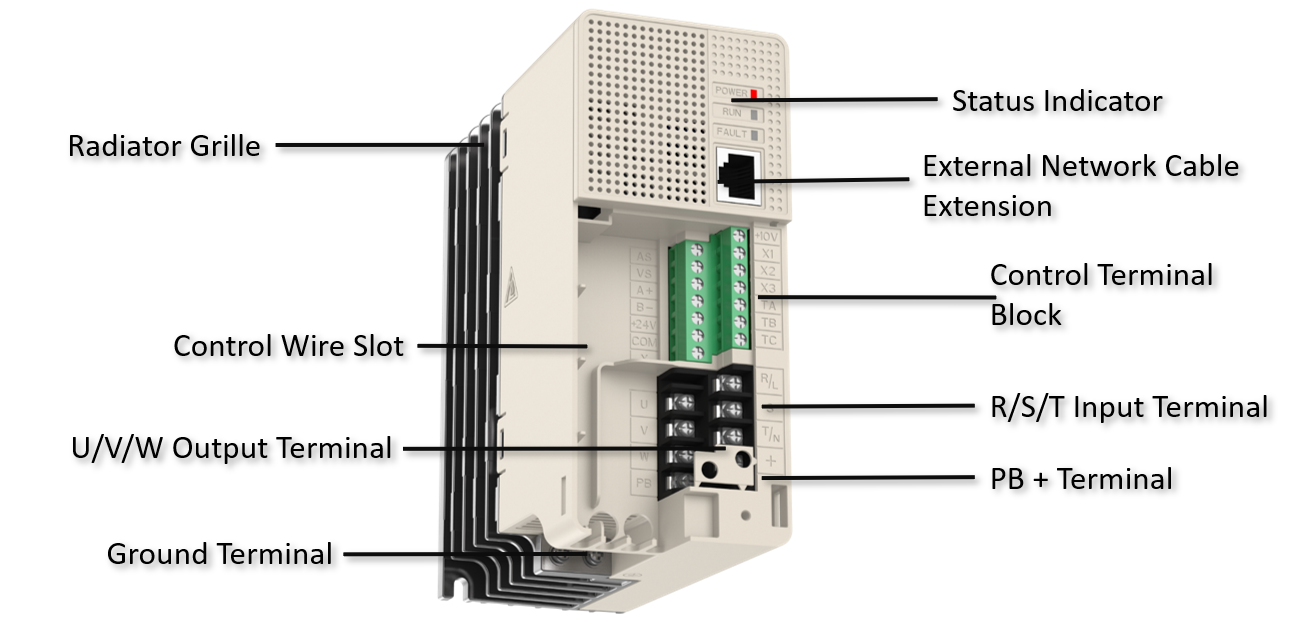

AC01 network type AC drive is designed with a wire groove on the terminal side. The control wires and the main circuit wires can be directly bundled and guided to the junction slot. Ensure beautiful wiring when using in cabinets or stand-alone.
AC01 network type AC drive, refer to TUV, EAC, CE product design. The AC input side of the product is equipped with an optional EMC filter solution, which meets the test certification of EMC-C3 level.
The full range of AC01 products are fully automated production lines, and product testing, aging, and packaging are all completed by automated drives, with stronger production standards and more standardized quality control.
AC01 series products integrate the advantages of AC310 drive algorithm, integrate the VF and open-loop vector control algorithms of asynchronous motors and synchronous motors, fully consider the driving requirements of motors with power below 7.5KW, and realize high adaptability and high convenience for small and medium power motors.

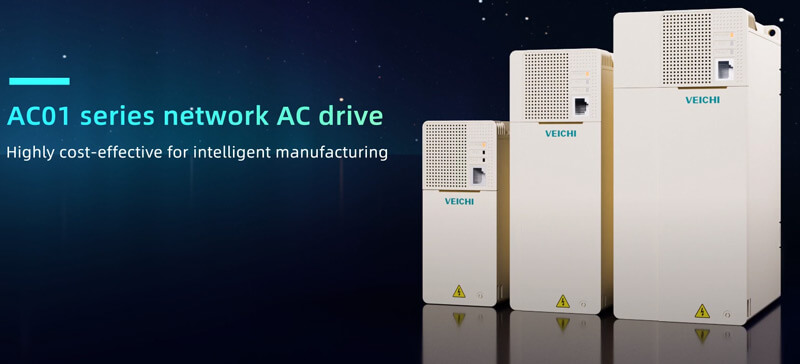

Miniaturization and networking, meet the needs of the low-power speed-adjustable drive industry.

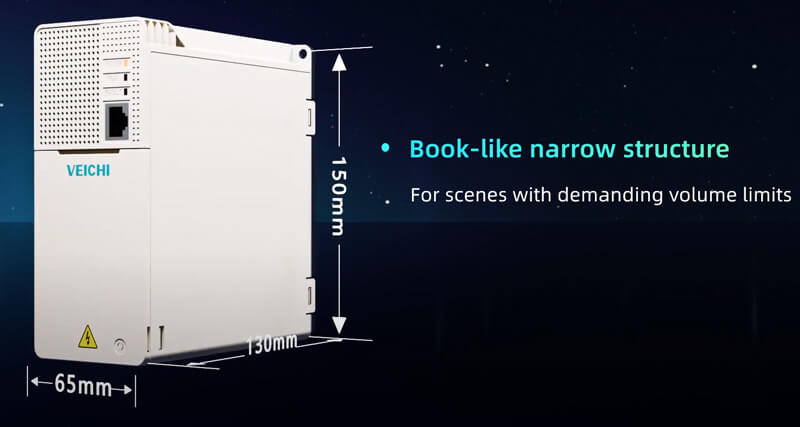

For scenes with demanding volume limits
The current power section is divided into S2 and T3 power supply products:
220V 50/60HZ Power level: 0.4KW-4KW 380V (three-phase power supply) 50/60HZ Power level: 0.75KW-7.5KW
Supports open-loop vector control of synchronous/asynchronous motors.
AC01-S2-R40G-B AC01-S2-R75G-B AC01-T3-R75G-B AC01-T3-1R5G-B
Outer dimensions: 65/150/130 Installation size:130/54/139.5 Installation aperture: Φ5.2
AC01-S2-1R5G-B AC01-S2-2R2G-B AC01-T3-2R2G-B AC01-T3-004G-B
Outer dimensions: 75/205/145 Installation size: 145/55/193.25 Installation aperture: Φ5.2
AC01-S2-004G-B AC01-T3-5R5G-B AC01-T3-7R5G-B
Outer dimensions: 100/230/165 Installation size: 165/82/232.9 Installation aperture: Φ6.2
Extended application mode: keyboard or 485 communication, for high-precision control applications of AC motors.
