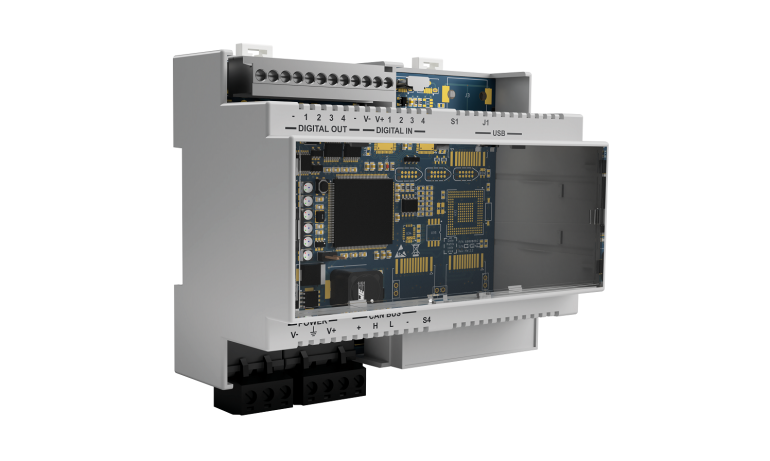

C203 USB

CONTROL UNIT 200 SERIES (C203A \| C203B)
Outputs	4 Outputs Signal Switching Devices (OSSDs) or 2 dual channel safety outputs
Safety outputs	High-side outputs (with extended protection function) Max voltage: 30 V dc \| Max current: 0.4 A \| Max power: 12 W
Inputs	2 dual channel TYPE3 digital inputs with common GND 4 single channel TYPE3 digital inputs with common GND [from FW 2.0.0 onwards]
Power supply	24 V dc (20–28 V dc) Max current: 1 A (no OSSD)
Max power consumption	5 W (no OSSD)
Assembly	DIN guide
Degree of protection	IP20
Terminals	Section: 1mm2 \| Max Current: 4 A with 1mm2 cables
System configuration	USB

CONTROL UNIT 200 SERIES (C203A | C203B)

Outputs

4 Outputs Signal Switching Devices (OSSDs)
or 2 dual channel safety outputs

Safety outputs

High-side outputs (with extended protection function)
Max voltage: 30 V dc | Max current: 0.4 A | Max power: 12 W

Inputs

2 dual channel TYPE3 digital inputs with common GND
4 single channel TYPE3 digital inputs with common GND [from FW 2.0.0 onwards]

Power supply

24 V dc (20–28 V dc) Max current: 1 A (no OSSD)

Max power consumption

5 W (no OSSD)

Assembly
