FZ 553-E0M2V9

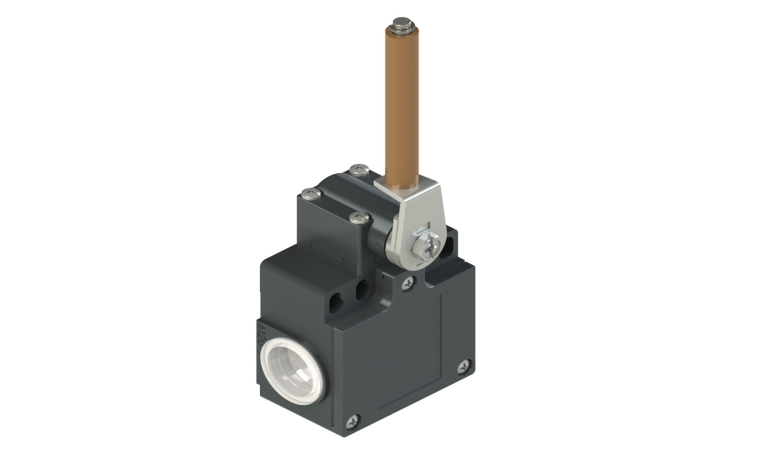

Ürün resmi

FZ 553-E0M2V9

  • Ürün İçerik
  • Özellik
  • Modeller
  • Uygulama Alanları



Position switch with porcelain roller lever

General features

Housing : Metal housing, two threaded M20x1,5 conduit entries (FZ series)
Contact block : 1NO+1NC snap action (B5)
Head : For rotating levers with porcelain roller
Actuator : With porcelain roller lever, 9 mm diameter
Protection degree : IP67 according to EN 60529
Positive opening : Yes
Type File
General Catalog ZE_GCP05A22-ENG_91-102.pdf
2D file ZF_DXF_FZ_x53_A10.zip
3D file ZF_STEP_FZ_x53_A10.zip



CCC Certificate
cULus Certificate
EAC Certificate
EC Declaration of Conformity
IMQ Certificate
UKCA Declaration of Conformity
